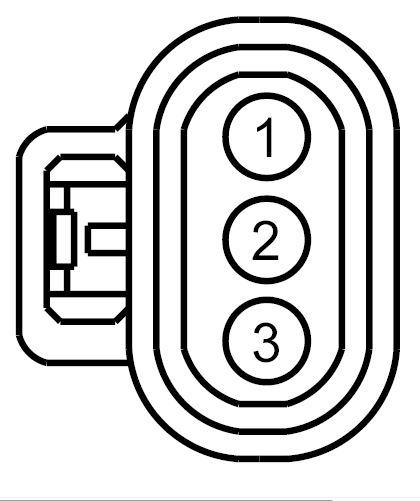

Connector End View C1644 - WASTEGATE VACUUM SENSOR
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C1644
Description
WASTEGATE VACUUM SENSOR
Color
Harness
12C508
Base Part #
14A464
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | LE458 (BU-WH) | 18 | CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE 2 (VREF2) | |
| 2 | RE454 (YE-GN) | 18 | CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE #2 | |
| 3 | VE850 (WH-VT) | 20 | SENSOR - WASTE GATE CONTROL PRESSURE (WGCP) |

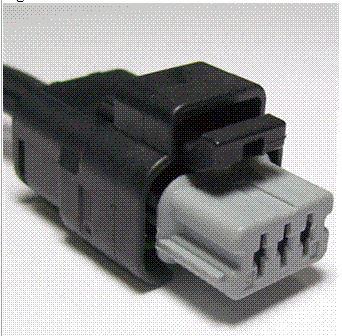

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1437 |
Service Part Number: FU2Z-14S411-AGA Gauge: 16 Pin material: Tin (greased) Cavities: 3 Vehicle Uses Sensor - Manifold Absolute Pressure (MAP) Sensor - Wastegate Pressure Solenoid - Wastegate Vacuum |
