Connector End View C1643 - FUEL RAIL PRESSURE (FRP) SENSOR

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

Connector: C1643

Description

FUEL RAIL PRESSURE (FRP) SENSOR

Color

Harness

12C508

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	RE454 (YE-GN)	18	CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE #2
2	LE238 (BU)	18	CTRL MOD. - POWERTRAIN # FUEL RAIL PRESSURE SENSOR +
3	LE423 (GN-VT)	18	CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE (VREF) (E-VREF) (VREF1)

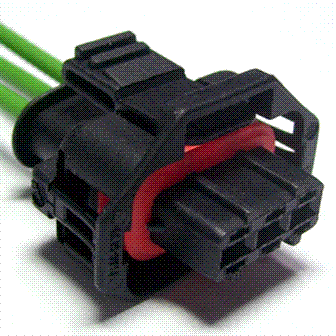

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1099

Courtesy of FORD MOTOR COMPANY

Service Part Number:

AU2Z-14S411-BBA

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses

Fuel Injector

Pump - Fuel Injection

Sensor - Manifold Absolute Pressure (MAP)

Solenoid - Fuel Volume Regulator Control
