Connector End View C1631 - UNIVERSAL HEATED OXYGEN SENSOR (HO2S) #11
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

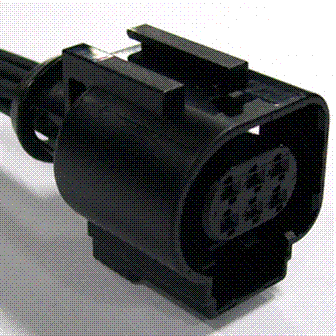

Connector: C1631
Description
UNIVERSAL HEATED OXYGEN SENSOR (HO2S) #11
Color
BK
Harness
12C508
Base Part #
9F472
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | LE451 (BN-YE) | 20 | CTRL MOD. - POWERTRAIN # UNIVERSAL HEATED OXYGEN PUMPING CURRENT 1ST (UO2SPC11) | |
| 2 | LE448 (GY-BU) | 20 | CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE UNIVERSAL HEGO 1ST (UO2SGREF11) | |
| 3 | CE235 (GN-BN) | 18 | CTRL MOD. - POWERTRAIN # HEATER OXYGEN SEN. PRE CAT. 1ST OR UNIQUE (UOS2HTR11) | |
| 4 | CBK02 (GN) | 16 | FUSE - 33 OR CIRCUIT BREAKER (VPWR 2) | |
| 5 | LE452 (GN) | 20 | CTRL MOD. - POWERTRAIN # UNIVERSAL HEATED OXYGEN MEASURED PUMPING CURRENT 1ST (UO2SPCT11) | |
| 6 | VE826 (BN-VT) | 20 | SENSOR - UNIVERSAL HEATED OXYGEN 1ST OR UNIQUE (UO2S11) |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1355 |
Service Part Number: DU2Z-14S411-AFA Gauge: 18 Pin material: Tin (greased) Cavities: 6 Vehicle Uses Control - Electronic Throttle Sensor - O2 (HEGO/ EGO) |
