Connector End View C1582 - CRUISE CONTROL MODULE (CCM)
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C1582
Description
CRUISE CONTROL MODULE (CCM)
Color
BK
Harness
14K733
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers

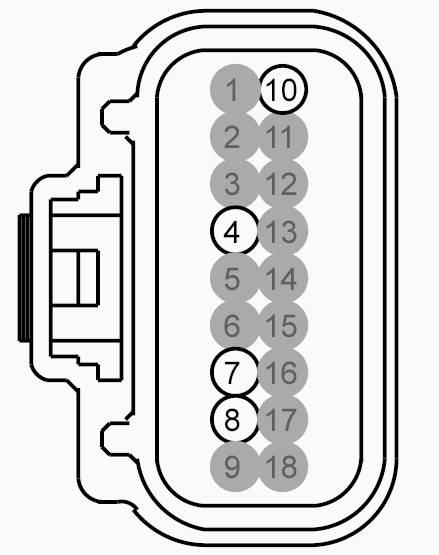

| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | * | * | Not Used | |
| 2 | * | * | Not Used | |
| 3 | * | * | Not Used | |
| 4 | GD120 (BK-GN) | 18 | GROUND - FENDER FRONT LEFT | |
| 5 | * | * | Not Used | |
| 6 | * | * | Not Used | |
| 7 | VDB26 (GY-BU) | 20 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) LOW | |
| 8 | VDB25 (GN-OG) | 20 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) HIGH | |
| 9 | * | * | Not Used | |
| 10 | CBB42 (GN) | 20 | FUSE - 42 OR CIRCUIT BREAKER | |
| 11 | * | * | Not Used | |
| 12 | * | * | Not Used | |
| 13 | * | * | Not Used | |
| 14 | * | * | Not Used | |
| 15 | * | * | Not Used | |
| 16 | * | * | Not Used | |
| 17 | * | * | Not Used | |
| 18 | * | * | Not Used |

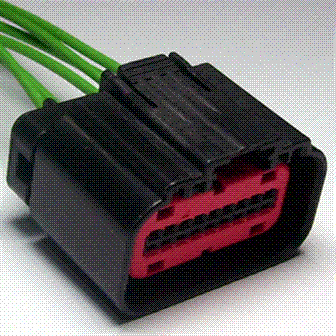

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1342 |
Service Part Number: CU2Z-14S411-GA Gauge: 20 Pin material: Silver Cavities: 18 Vehicle Uses Module - Adaptive Cruise Control |
| Pigtail Kit Part Number WPT-1411 |
Service Part Number: CU2Z-14S411-GB Gauge: 18 Pin material: Silver Cavities: 18 Vehicle Uses Module - Adaptive Cruise Control Module - Occupant Classification Module - Reverse Park Aid (RPA) |
