Connector End View C922 - INLINE
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
InlineC922
Description
INLINE
Color
Base Part #
Service Pigtail
See Below
MALE
Harness 14014
FEMALE
Harness 14D466
| Pin | Circuit | Gauge | Qualifier |
| 1 | CRD06 (BN-YE) | 12 | |
| 2 | CRW02 (GY-BU) | 18 | |
| 3 | CRW13 (GN) | 18 | |
| 4 | CBP05 (YE) | 18 |
| Available Pigtail Kits | |

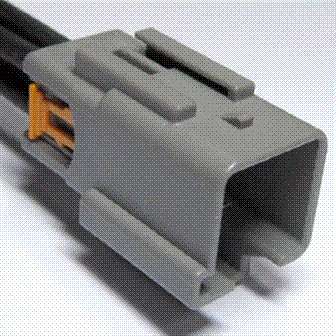

| Pigtail Kit Part Number WPT-1143 |
Service Part Number: AU2Z-14S411-BPA Gauge: 10 Pin material: Tin Cavities: 4 Vehicle Uses: Switch - Seat Lumbar |

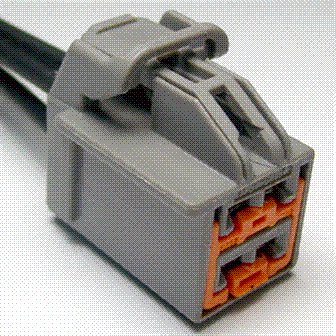

| Pigtail Kit Part Number WPT-1260 |
Service Part Number: CU2Z-14S411-JA Gauge: 14 Pin material: Tin Cavities: 4 Vehicle Uses: Connector - Inline Motor - Power Folding Seat Switch - Power Window - Driver |
