Connector End View C912 - OVERHEAD CONSOLE
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C912
Description
OVERHEAD CONSOLE
Color
Harness
14335
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | * | * | Not Used | |
| 2 | * | * | Not Used | |
| 3 | CPR85 (GN-WH) | 22 | SWITCH - SHADE MOON/SUN ROOF CLOSE | |
| 4 | CPR86 (GY-BN) | 22 | SWITCH - SHADE MOON/SUN ROOF OPEN | |
| 5 | GD138 (BK) | 22 | GROUND - COWL SIDE/PILLAR A RIGHT (6L2T) | |
| 6 | VLN30 (VT) | 26 | LIN 2 | |
| 7 | VLN30 (BU-WH) | 22 | PANEL ILLUMINATION | |
| 8 | VLN30 (BN-GN) | 22 | FUSE OR CIRCUIT BREAKER | |
| 9 | * | * | Not Used | |
| 10 | * | * | Not Used | |
| 11 | CPR40 (YE-OG) | 22 | SWITCH - MOON/SUN ROOF CLOSE | |
| 12 | CPR31 (VT-BN) | 22 | SWITCH - MOON/SUN ROOF OPEN | |
| 13 | * | * | Not Used | |
| 14 | * | * | Not Used | |
| 15 | CLN38 (BU-WH) | 22 | CTRL MOD. - FOOTWELL (STEP IN) LAMP LEFT | |
| 16 | CBP17 (BN-GN) | 22 | AMBIENT LIGHT POWER |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1152 |

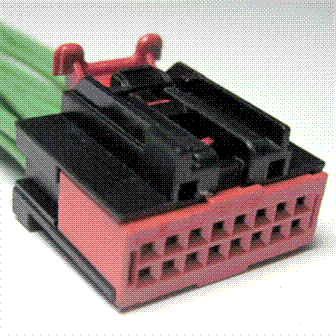

Service Part Number: 3U2Z-14S411-AJD Gauge: 18 Pin material: Silver Cavities: 16 Vehicle Uses Mirror - Sideview Mirror - Vanity Overhead Console -Inline (Female) Switch - Multifunction |
