Connector End View C911 - AUTO-DIMMING INTERIOR MIRROR
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C911
Description
AUTO-DIMMING INTERIOR MIRROR
Color
BK
Harness
14335
Base Part #
17700
Service Pigtail
See Below
Check for Terminal Part Numbers

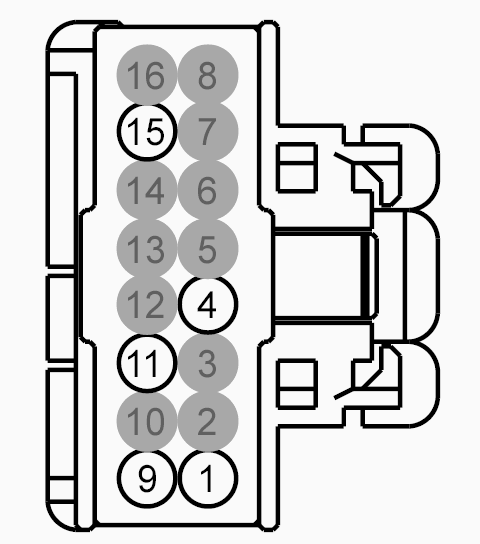

| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CBP36 (BU-BN) | 18 | FUSE - 36 OR CIRCUIT BREAKER | |
| 2 | * | * | Not Used | |
| 3 | * | * | Not Used | |
| 4 | GD241 (BK) | 18 | GROUND - COWL SIDE/PILLAR A RIGHT # 4TH POINT | |
| 5 | * | * | Not Used | |
| 6 | * | * | Not Used | |
| 7 | * | * | Not Used | |
| 8 | * | * | Not Used | |
| 9 | CLS28 (BU-WH) | 18 | CTRL MOD. - RELAY REVERSE LAMP CONTROL (RLC) | |
| 10 | * | * | Not Used | |
| 11 | LRD12 (BU-GY) | 20 | CTRL MOD. - ELECTROCHROMIC MIRROR + | |
| 12 | * | * | Not Used | |
| 13 | * | * | Not Used | |
| 14 | * | * | Not Used | |
| 15 | RRD12 (BN) | 20 | CTRL MOD. - ELECTROCHROMIC MIRROR - | |
| 16 | * | * | Not Used |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1294 |

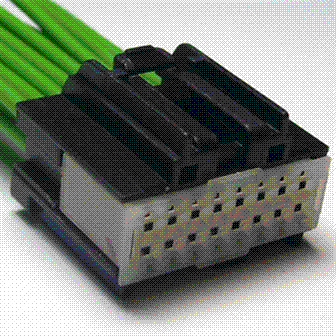

Service Part Number: CU2Z-14S411-AJA Gauge: 18 Pin material: Silver Cavities: 16 Vehicle Uses Mirror - Rearview Mirror - Rearview (electrochromatic) |
