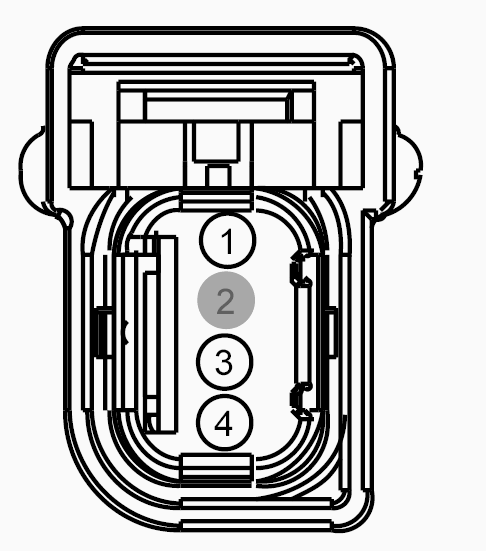

Connector End View C729 - EXTERIOR DOOR HANDLE, LEFT REAR
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C729
Description
EXTERIOR DOOR HANDLE, LEFT REAR
Color
Harness
14241
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | VPK46 (GY) | 20 | SENSOR - KEYLESS VEHICLE HANDLE REAR DRIVER SIDE POWER/DATA | |
| 2 | * | * | Not Used | |
| 3 | CLN63 (VT) | 18 | CTRL MOD. - DOOR BIN LAMP DRIVER | |
| 4 | RPK39 (VT-OG) | 20 | SENSOR - KEYLESS VEHICLE HANDLE |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1443 |
Service Part Number: FU2Z-14S411-ANA Gauge: 20 Pin material: Silver Cavities: 4 Vehicle Uses Antenna - Keyless Entry Lamp - Front Turn Lamp - Side Marker (Rear Fender) Switch - Keyless Door Handle |
