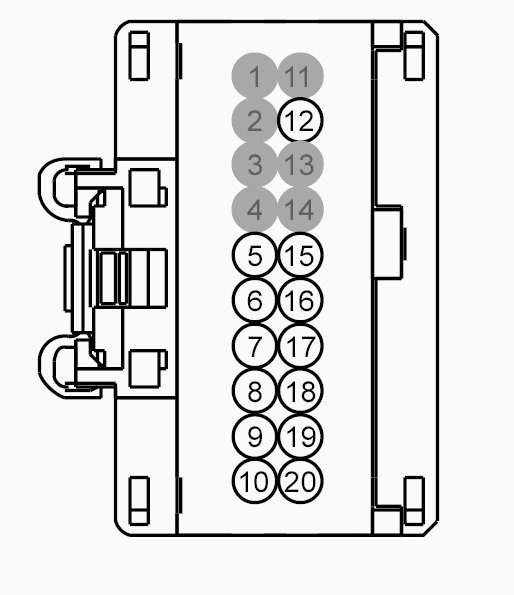

Connector End View C652B - PASSENGER DOOR MODULE (PDM)
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C652B
Description
PASSENGER DOOR MODULE (PDM)
Color
BK
Harness
14K138
Base Part #
part# N/A
Service Pigtail
Not Available
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | * | * | Not Used | |
| 2 | * | * | Not Used | |
| 3 | * | * | Not Used | |
| 4 | * | * | Not Used | |
| 5 | LPM12 (BU-GY) | 20 | CTRL MOD. - SENSORS MIRROR POSITION (RIGHT) + | |
| 6 | VPM37 (BU-OG) | 20 | SENSOR - RIGHT MIRROR POSITION # HORIZONTAL | |
| 7 | CPM40 (WH-OG) | 22 | CTRL MOD. - RIGHT MIRROR FOLD OUT (DRV) | |
| 8 | CPM33 (WH-VT) | 20 | CTRL MOD. - RIGHT MIRROR RIGHT | |
| 9 | CPM34 (WH-BN) | 22 | CTRL MOD. - RIGHT MIRROR UP | |
| 10 | CLN32 (BN-YE) | 20 | CTRL MOD. - PUDDLE LAMP RIGHT | |
| 11 | * | * | Not Used | |
| 12 | RPL62 (GY) | 20 | CTRL MOD. - DOOR LOCK # SWITCH TRIM DOOR LOCK PASSENGER | |
| 13 | * | * | Not Used | |
| 14 | * | * | Not Used | |
| 15 | RRB07 (YE-VT) | 20 | CTRL MOD. - BLINDSPOT WARNING # LED MIRROR RIGHT OR PASSENGER - | |
| 16 | VPM38 (BN-GN) | 20 | SENSOR - RIGHT MIRROR POSITION # VERTICAL | |
| 17 | RPM08 (GN-BU) | 20 | CTRL MOD. - RIGHT MIRROR RETURN | |
| 18 | CPM07 (BN) | 22 | CTRL MOD. - RIGHT MIRROR FOLD IN | |
| 19 | CRB07 (BN-WH) | 20 | CTRL MOD. - BLINDSPOT WARNING # LED MIRROR RIGHT OR PASSENGER + | |
| 20 | CRD14 (GN-VT) | 18 | CTRL MOD. - HEATER MIRROR RIGHT |
