Connector End View C609 - FRONT DOOR LATCH RELEASE MOTOR RH
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C609
Description
FRONT DOOR LATCH RELEASE MOTOR RH
Color
BK
Harness
14K138
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CPL13 (BN-GN) | 14 | CTRL MOD. - DOOR LOCK # ALL UNLOCK | |
| 2 | CPL11 (GY-BN) | 14 | CTRL MOD. - DOOR LOCK # ALL LOCK | |
| 3 | * | * | Not Used | |
| 4 | RPL62 (GY) | 20 | CTRL MOD. - DOOR LOCK # SWITCH TRIM DOOR LOCK PASSENGER | |
| 5 | CPL35 (BU) | 20 | SWITCH - LATCH PASSENGER # UNLOCK | |
| 6 | CPL31 (WH) | 20 | SWITCH - LATCH PASSENGER # AJAR | |
| 7 | * | * | Not Used | |
| 8 | * | * | Not Used |

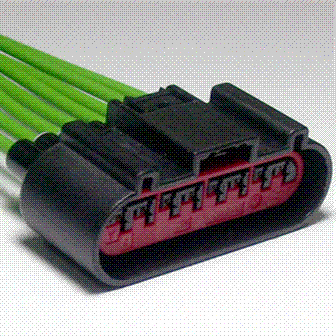

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1366 |
Service Part Number: 3U2Z-14S411-MBB Gauge: 16 Pin material: Silver Cavities: 8 Vehicle Uses Actuator - Door Lock - LH - Front Actuator - Door Lock - LH - Rear Actuator - Door Lock - RH - Front Actuator - Door Lock - RH - Rear Module - Liftgate Switch - Door Ajar / Interior Lamp Switch - Door Lock (LH) Switch - Door Lock (RH) Switch - Sliding Door Contact |
