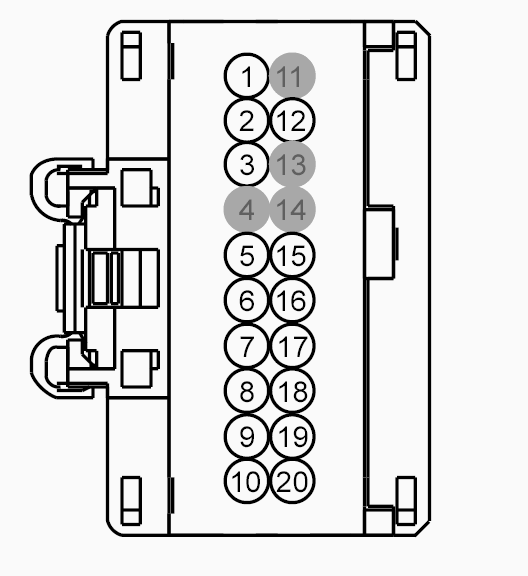

Connector End View C501B - DRIVER DOOR MODULE (DDM)
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C501B
Description
DRIVER DOOR MODULE (DDM)
Color
BK
Harness
14A584
Base Part #
203A28
Service Pigtail
Not Available
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CPS15 (VT-WH) | 22 | SWITCH - MEMORY DRIVER P1 | |
| 2 | CPS17 (BU-OG) | 22 | SWITCH - MEMORY DRIVER P3 | |
| 3 | CPS16 (YE) | 22 | SWITCH - MEMORY DRIVER P2 | |
| 4 | * | * | Not Used | |
| 5 | LPM30 (GY-BN) | 22 | CTRL MOD. - SENSORS MIRROR POSITION (LEFT) + | |
| 6 | VPM35 (YE-BU) | 22 | SENSOR - LEFT MIRROR POSITION # HORIZONTAL | |
| 7 | CPM39 (GN-VT) | 22 | CTRL MOD. - LEFT MIRROR FOLD OUT (DRV) | |
| 8 | CPM28 (BU-BN) | 22 | CTRL MOD. - LEFT MIRROR RIGHT | |
| 9 | CPM29 (GN) | 22 | CTRL MOD. - LEFT MIRROR UP | |
| 10 | CLN31 (VT-GN) | 22 | CTRL MOD. - PUDDLE LAMP LEFT | |
| 11 | * | * | Not Used | |
| 12 | RPL61 (BN-GN) | 22 | CTRL MOD. - DOOR LOCK # SWITCH TRIM DOOR LOCK DRIVER | |
| 13 | * | * | Not Used | |
| 14 | * | * | Not Used | |
| 15 | RRB06 (GY-VT) | 22 | CTRL MOD. - BLINDSPOT WARNING # LED MIRROR LEFT OR DRIVER - | |
| 16 | VPM36 (BN-YE) | 22 | SENSOR - LEFT MIRROR POSITION # VERTICAL | |
| 17 | RPM05 (VT-GY) | 22 | CTRL MOD. - LEFT MIRROR RETURN | |
| 18 | CPM04 (VT-BN) | 22 | CTRL MOD. - LEFT MIRROR FOLD IN | |
| 19 | CRB06 (GN-WH) | 22 | CTRL MOD. - BLINDSPOT WARNING # LED MIRROR LEFT OR DRIVER + | |
| 20 | CRD13 (GN-VT) | 18 | CTRL MOD. - HEATER MIRROR LEFT |
