Connector End View C476 - REAR WINDOW WIPER MOTOR
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C476
Description
REAR WINDOW WIPER MOTOR
Color
GY
Harness
14A583
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CRW13 (GN) | 18 | SWITCH - REAR WIPER | |
| 2 | CRW02 (GY-BU) | 18 | CTRL MOD. - REAR WIPER | |
| 3 | GD351 (BK-GN) | 14 | GROUND - PILLAR D RIGHT |

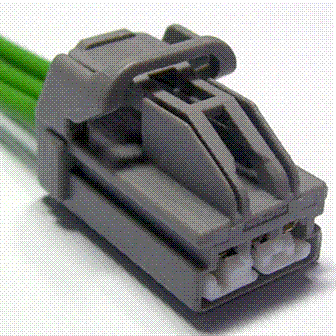

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1147 |
Service Part Number: 3U2Z-14S411-BHAB Gauge: 16 Pin material: Silver Cavities: 3 Vehicle Uses Motor - Rear Window Wiper Motor - Seat Recline Refrigerator |
