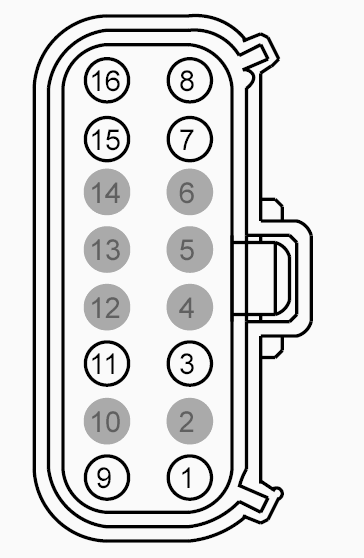

Connector End View C1510A - HEADLAMP ASSEMBLY RH
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C1510A
Description
HEADLAMP ASSEMBLY RH
Color
BK
Harness
14K733
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CLF05 (BU-GN) | 20 | CTRL MOD. - BEAM LOW RIGHT | |
| 2 | * | * | Not Used | |
| 3 | CBP05 (YE) | 14 | FUSE - 5 OR CIRCUIT BREAKER | |
| 4 | * | * | Not Used | |
| 5 | * | * | Not Used | |
| 6 | * | * | Not Used | |
| 7 | CLF61 (GY-BU) | 20 | CTRL MOD. - DAYTIME RUNNING LIGHT LEFT | |
| 8 | GD123 (BK-GY) | 16 | GROUND - FENDER FRONT RIGHT | |
| 9 | SBB31 (WH-RD) | 16 | FUSE - 31 OR CIRCUIT BREAKER | |
| 10 | * | * | Not Used | |
| 11 | CLF03 (VT-OG) | 20 | CTRL MOD. - BEAM HIGH RIGHT | |
| 12 | * | * | Not Used | |
| 13 | * | * | Not Used | |
| 14 | * | * | Not Used | |
| 15 | CLS07 (BN-YE) | 20 | CTRL MOD. - PARK FRONT RIGHT OR FRONT/REAR RIGHT | |
| 16 | GD123 (BK-GY) | 18 | GROUND - FENDER FRONT RIGHT |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1279 |
Service Part Number: CU2Z-14S411-ADA Gauge: 16 Pin material: Silver Cavities: 16 Vehicle Uses Lamp - Headlamp - High/Low Beam Mating Connector WPT-1404 Module - Heated Seat (driver) Module - Transfer Case Shift Control |
