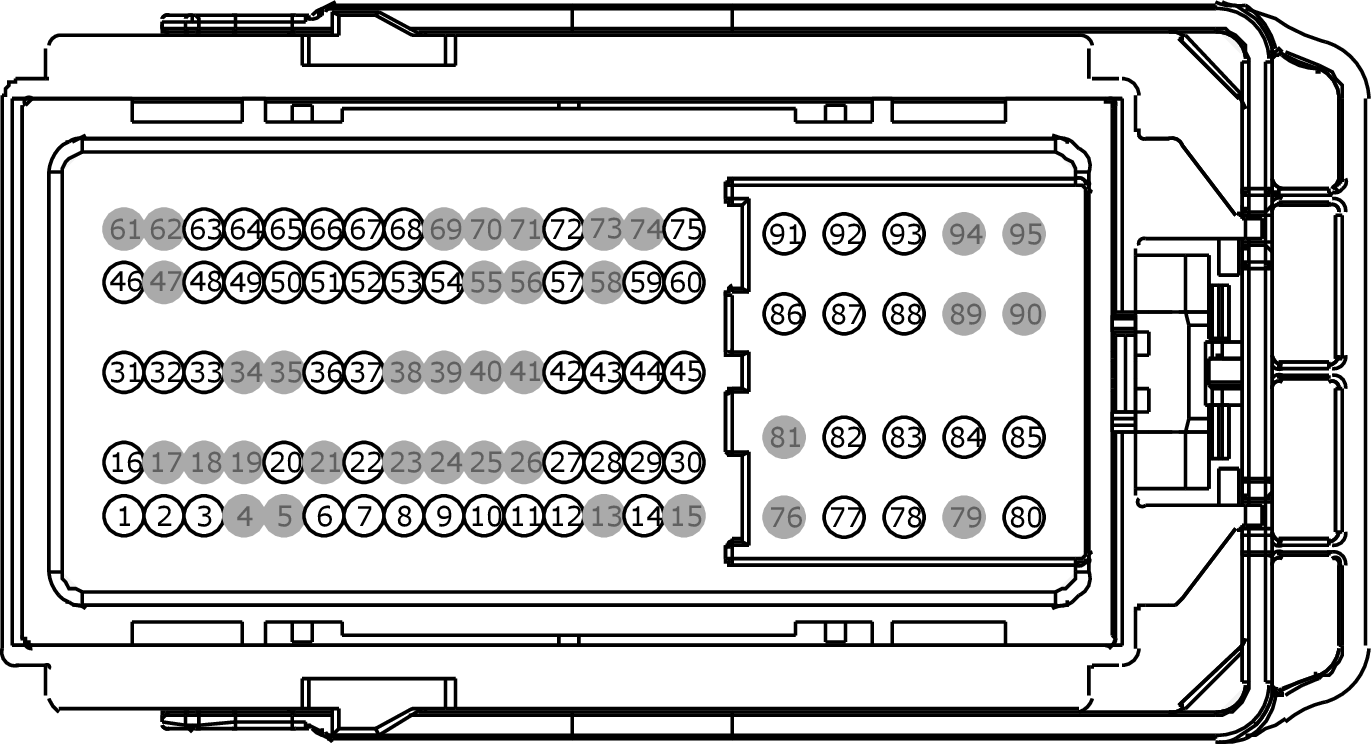

Connector End View C1381E - POWERTRAIN CONTROL MODULE (PCM)
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C1381E
Description
POWERTRAIN CONTROL MODULE (PCM)
Color
Harness
12C508
Base Part #
12A659
Service Pigtail
Not Available
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CE421 (VT) | 18 | CTRL MOD. - POWERTRAIN # VARIABLE CAMSHAFT TIMING BANK 1 SOLENOID 1 (VCT11) | |
| 2 | CET18 (GY-YE) | 20 | CTRL MOD. - POWERTRAIN # SHIFT SOLENOID E (SSE) | |
| 3 | VE836 (VT-GN) | 20 | SENSOR - TURBOCHARGER BYPASS VALVE (TCBY) | |
| 4 | * | * | Not Used | |
| 5 | * | * | Not Used | |
| 6 | LE458 (BU-WH) | 20 | CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE 2 (VREF2) | |
| 7 | LE134 (YE) | 20 | CTRL MOD. - POWERTRAIN # ELECTRONIC THROTTLE CONTROL (ETCREF) | |
| 8 | LE423 (GN-VT) | 20 | CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE (VREF) | |
| 9 | * | * | Not Used | |
| 10 | VET32 (VT) | 20 | SENSOR - TRANSMISSION RANGE # PWM OUTPUT (TR -P) | |
| 11 | VE711 (YE-VT) | 20 | SENSOR - CRANKSHAFT POSITION (CKP) | |
| 12 | VET26 (BN-GN) | 20 | SENSOR - OUTPUT SHAFT SPEED (OSS) | |
| 13 | * | * | Not Used | |
| 14 | CE235 (GN-BN) | 18 | CTRL MOD. - POWERTRAIN # HEATER OXYGEN SEN. PRE CAT. 1ST OR UNIQUE (UO2SHTR11) | |
| 15 | * | * | Not Used | |
| 16 | VE824 (YE-GN) | 20 | SOLENOID - TURBOCHARGER WASTEGATE REGULATING VALVE (TCWRVS) | |
| 17 | * | * | Not Used | |
| 18 | * | * | Not Used | |
| 19 | CE358 (GY-YE) | 18 | CTRL MOD. - POWERTRAIN # PUMP VARIABLE OIL | |
| 20 | RE454 (YE-GN) | 18 | CTRL MOD. - POWERTRAIN # SIGNAL RETURN (SIGRTN) | |
| 21 | * | * | Not Used | |
| 22 | LE111 (VT-GN) | 20 | TSS / OSS / TRS POWER SUPPLY | |
| 23 | * | * | Not Used | |
| 24 | * | * | Not Used | |
| 25 | * | * | Not Used | |
| 26 | * | * | Not Used | |
| 27 | VET33 (WH-OG) | 20 | SENSOR - TURBINE/TRANSMISSION SHAFT SPEED (TSS) + | |
| 28 | VE706 (BN-BU) | 20 | SENSOR - CAMSHAFT POSITION BANK 1 SENSOR 1 (CMP11) | |
| 29 | CE422 (WH-OG) | 18 | CTRL MOD. - POWERTRAIN # VARIABLE CAMSHAFT TIMING BANK 1 SOLENOID 2 (VCT12) | |
| 30 | CET08 (BN-WH) | 20 | CTRL MOD. - POWERTRAIN # SHIFT SOLENOID D (SSD) | |
| 31 | RE134 (BU-OG) | 20 | CTRL MOD. - POWERTRAIN # ELECTRONIC THROTTLE CONTROL (ETCRTN) | |
| 32 | RET24 (BN-BU) | 20 | TSS / OSS / TRS SIGNAL RETURN (TSS / OSS / TRS GND) | |
| 33 | LE329 (BU) | 18 | CTRL MOD. - POWERTRAIN # MANIFOLD PRESSURE SENSOR (MAP) + | |
| 34 | VE751 (BN-VT) | 18 | SENSOR-INTAKE AIR TEMPERATURE 2ND (IAT2) | |
| 35 | VE805 (WH-VT) | 20 | SENSOR - WASTE GATE CONTROL PRESSURE (WGCP) | |
| 36 | VE712 (BU-GY) | 20 | SENSOR - CYLINDER HEAD TEMPERATURE (CHT) | |
| 37 | LE238 (BU) | 18 | CTRL MOD. - POWERTRAIN # FUEL RAIL PRESSURE SENSOR + | |
| 38 | * | * | Not Used | |
| 39 | * | * | Not Used | |
| 40 | * | * | Not Used | |
| 41 | * | * | Not Used | |
| 42 | CE303 (WH-VT) | 18 | CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 1 (COP1A) | |
| 43 | CE306 (GN-VT) | 18 | CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 4 (COP4C) | |
| 44 | CET10 (BU-GY) | 20 | TORQUE CONVERTER CLUTCH (TCC) SOLENOID | |
| 45 | CET06 (GN-BN) | 20 | CTRL MOD. - POWERTRAIN # SHIFT SOLENOID B (SSB) | |
| 46 | VE716 (YE) | 20 | SENSOR - ENGINE COOLANT TEMPERATURE (ECT) | |
| 47 | * | * | Not Used | |
| 48 | LE452 (GN) | 20 | CTRL MOD. - POWERTRAIN # UNIVERSAL HEATED OXYGEN MEASURED PUMPING CURRENT 1ST (UO2SPCT11) | |
| 49 | LE448 (GY-BU) | 20 | CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE UNIVERSAL HEGO 1ST (UO2SGREF11) | |
| 50 | VE802 (BN-BU) | 18 | SENSOR - KNOCK 2ND BANK 1ST (KS2+) | |
| 51 | RE324 (GN) | 18 | CTRL MOD. - POWERTRAIN # KNOCK SENSOR 2ND BANK 1ST (KS2-) | |
| 52 | VE819 (GN-VT) | 20 | SENSOR - THROTTLE POSITION # POSITIVE SLOPE (TP2) | |
| 53 | RE405 (GN-WH) | 18 | CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE (SIGRTN) | |
| 54 | VE707 (GN-VT) | 20 | SENSOR - CAMSHAFT POSITION BANK 1 SENSOR 2 (CMP12) | |
| 55 | * | * | Not Used | |
| 56 | * | * | Not Used | |
| 57 | CE304 (YE-BU) | 18 | CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 2 (COP2D) | |
| 58 | * | * | Not Used | |
| 59 | CET09 (YE-VT) | 20 | LINE PRESSURE CONTROL (LPC) | |
| 60 | CET05 (BU-GN) | 20 | CTRL MOD. - POWERTRAIN # SHIFT SOLENOID A (SSA) | |
| 61 | * | * | Not Used | |
| 62 | * | * | Not Used | |
| 63 | LE451 (BN-YE) | 20 | CTRL MOD. - POWERTRAIN # UNIVERSAL HEATED OXYGEN PUMPING CURRENT 1ST (UO2SPC11) | |
| 64 | VE826 (BN-VT) | 20 | SENSOR - UNIVERSAL HEATED OXYGEN 1ST OR UNIQUE (UO2S11) | |
| 65 | VE801 (VT-OG) | 18 | SENSOR - KNOCK 1ST BANK 1ST OR UNIQUE (KS1+) | |
| 66 | RE323 (WH-BN) | 18 | CTRL MOD. - POWERTRAIN # KNOCK SENSOR 1ST BANK 1ST OR UNIQUE (KS1-) | |
| 67 | VET27 (BN-YE) | 20 | SENSOR - TRANSMISSION FLUID TEMPERATURE (TFT) | |
| 68 | VE818 (BN) | 20 | SENSOR - THROTTLE POSITION # NEGATIVE SLOPE (TP1) | |
| 69 | * | * | Not Used | |
| 70 | * | * | Not Used | |
| 71 | * | * | Not Used | |
| 72 | CE305 (BU-OG) | 18 | CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 3 (COP3B) | |
| 73 | * | * | Not Used | |
| 74 | * | * | Not Used | |
| 75 | CET07 (GY-OG) | 20 | CTRL MOD. - POWERTRAIN # SHIFT SOLENOID C (SSC) | |
| 76 | * | * | Not Used | |
| 77 | RE226 (GN-VT) | 14 | CTRL MOD. - POWERTRAIN # FUEL VOLUME REGULATOR RETURN (FVRRTN) | |
| 78 | CE226 (YE-VT) | 14 | CTRL MOD. - POWERTRAIN # FUEL VOLUME REGULATOR (FVR) | |
| 79 | RET173 (VT-GN) | 18 | CTRL MOD. -POWERTRAIN TRANS FLUID PUMP CONTROL | |
| 80 | CET25 (BU-GN) | 18 | CTRL MOD. - POWERTRAIN # TRANSMISSION SOLENOID POWER CONTROL (TSPC) | |
| 81 | CE174 (YE-GY) | 18 | CTRL MOD. -POWERTRAIN # ELECTRIC WATER PUMP RELAY | |
| 82 | CE207 (VT-GY) | 16 | CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 3 (INJ) + | |
| 83 | CE206 (GY-YE) | 16 | CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 2 (INJ) + | |
| 84 | CE205 (GN-BU) | 16 | CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 1 (INJ) + | |
| 85 | CE208 (YE-OG) | 16 | CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 4 (INJ) + | |
| 86 | CE412 (YE-VT) | 18 | CTRL MOD. - POWERTRAIN # THROTTLE ACTUATOR CONTROL MOTOR (TACM+) | |
| 87 | RE205 (YE-BU) | 16 | CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 1 (INJ) - | |
| 88 | RE206 (BU-OG) | 16 | CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 2 (INJ) - | |
| 89 | * | * | Not Used | |
| 90 | * | * | Not Used | |
| 91 | CE426 (BU-GN) | 18 | CTRL MOD. - POWERTRAIN # THROTTLE ACTUATOR CONTROL MOTOR (TACM-) | |
| 92 | RE208 (BU) | 16 | CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 4 (INJ) - | |
| 93 | RE207 (GN-VT) | 16 | CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 3 (INJ) - | |
| 94 | * | * | Not Used | |
| 95 | * | * | Not Used |
