Connector End View C1339 - CRANKSHAFT POSITION (CKP) SENSOR
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

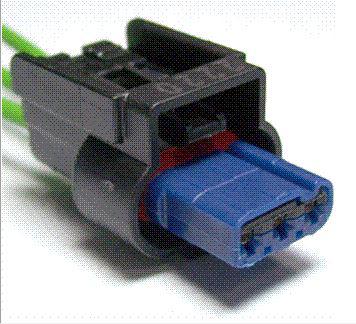

Connector: C1339
Description
CRANKSHAFT POSITION (CKP) SENSOR
Color
BK
Harness
12C508
Base Part #
part# N/A
Service Pigtail
See Below

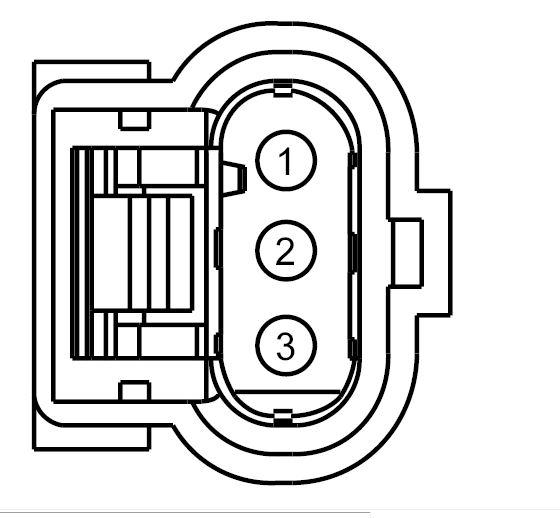

| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | LE423 (GN-VT) | 20 | CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE (VREF) | |
| 2 | VE711 (YE-VT) | 20 | SENSOR - CRANKSHAFT POSITION (CKP) | |
| 3 | RE405 (GN-WH) | 18 | CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE (SIGRTN) |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1202 |
Service Part Number: BU2Z-14S411-ARA Gauge: 16 Pin material: Silver Cavities: 3 Vehicle Uses Actuator - Turbocharger Waste Gate Coil - Ignition Sensor - Cam Shaft Position Sensor - Crank Shaft Position |
