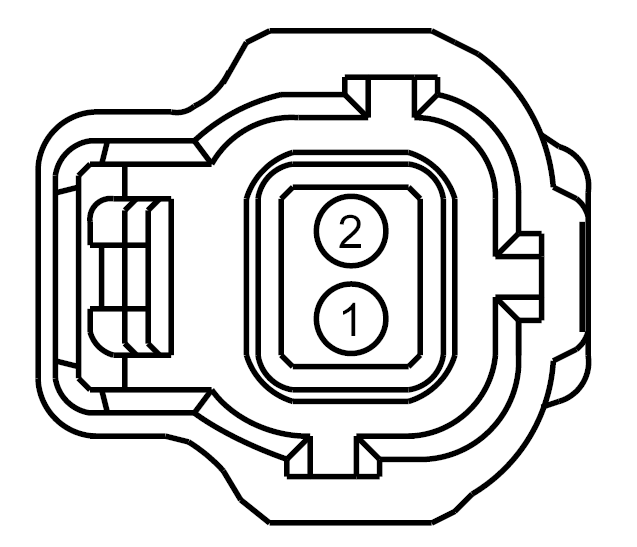

Connector End View C1287 - INTAKE AIR TEMPERATURE (IAT) SENSOR

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

Connector: C1287

Description

INTAKE AIR TEMPERATURE (IAT) SENSOR

Color

Harness

12C508

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VE740 (VT-GY)	18	SENSOR - INTAKE AIR TEMPERATURE (IAT)
2	RE332 (YE-BU)	18	CTRL MOD. - POWERTRAIN # INTAKE AIR TEMP. SENSOR (SIGRTN)
2	RE804 (GY-BN)	18	SENSOR - MANIFOLD ABSOLUTE PRESSURE (MAP)	2.0L

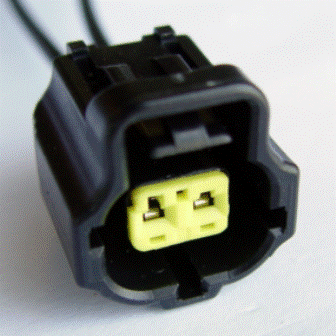

Available Pigtail Kits

Pigtail Kit Part Number

WPT-322

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-JZA

Gauge:

Pin material:

Tin (greased)

Cavities:

Vehicle Uses

Resistor - Daytime Running Lamp (DRL)

Sensor - Air Charge Temperature

Sensor - Brake Pressure

Solenoid - Canister Vent

Switch - Brake Pressure
