Connector End View C1183 - FUEL INJECTOR 3
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C1183
Description
FUEL INJECTOR 3
Color
BK
Harness
9H589/14B485
Base Part #
9F593
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CE207 (VT-GY) | 18 | CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 3 (INJ3) | |
| 2 | RE207 (GN-VT) | 18 | CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 3 (INJ3RTN) |

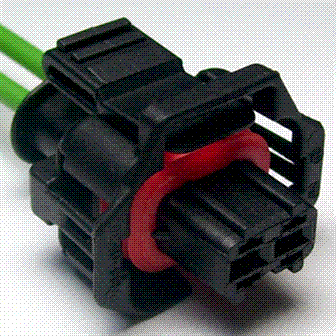

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1302 |
Service Part Number: CU2Z-14S411-ARA Gauge: 16 Pin material: Silver Cavities: 2 Vehicle Uses Fuel Injector Pump - Fuel Injection Solenoid - Fuel Volume Regulator Control |
