Connector End View C1077 - COOLING FAN MOTOR 2
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

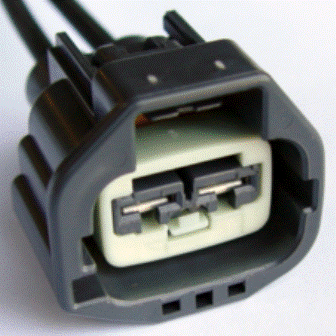

Connector: C1077
Description
COOLING FAN MOTOR 2
Color
GY
Harness
8C290
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CEC07 (BN) | 10 | RELAY - ENGINE COOLING FAN HIGH SPEED | |
| 2 | GD122 (BK) | 10 | GROUND - FENDER FRONT LEFT # 3RD POINT |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1417 |
Service Part Number: 3U2Z-14S411-EUAB Gauge: 14 Pin material: Silver Cavities: 2 Vehicle Uses Motor - Engine Cooling Fan Pump - Fuel (External) Resistor - Fan Dropping Trailer Tow - Vehicle Side |
| Pigtail Kit Part Number WPT-778 |
Service Part Number: 3U2Z-14S411-EUAA Gauge: 10 Pin material: Tin Cavities: 2 Vehicle Uses Module - Power Moonroof Motor - Rear Window Wiper |
