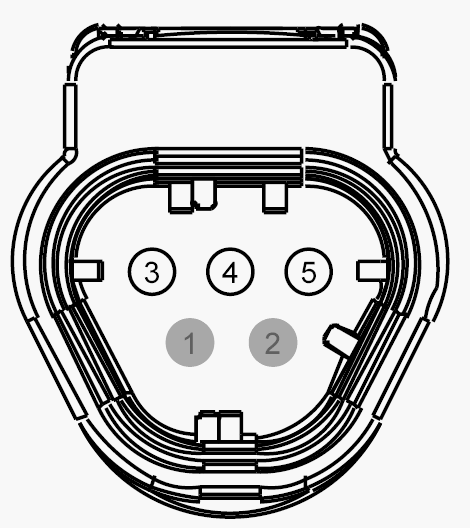

Connector End View C1073 - FUEL RAIL PRESSURE (FRP) SENSOR

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

Connector: C1073

Description

FUEL RAIL PRESSURE (FRP) SENSOR

Color

Harness

14B485

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	*	*	Not Used
2	*	*	Not Used
3	RE454 (YE-GN)	20	CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE #2
4	LE238 (GY)	20	CTRL MOD. - POWERTRAIN # FUEL RAIL PRESSURE SENSOR +
5	LE423 (GN-VT)	20	CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE (VREF) (E-VREF) (VREF1)

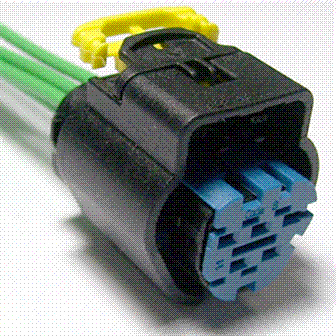

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1418

Courtesy of FORD MOTOR COMPANY

Service Part Number:

FU2Z-14S411-HA

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses

Sensor - Fuel Rail Pressure

Sensor - Turbo Intake Pressure/Temperature
