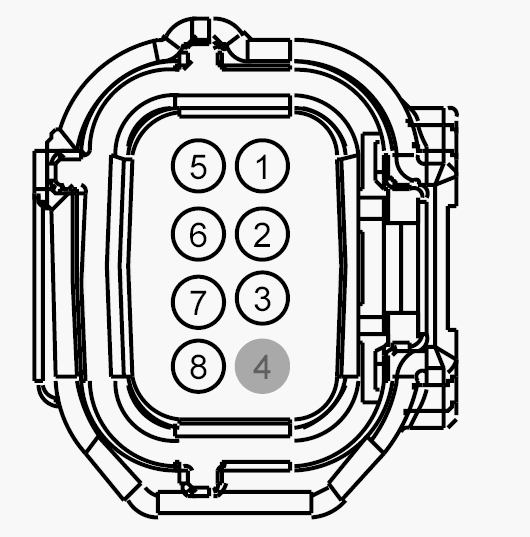

Connector End View C415 - REAR LAMP ASSEMBLY RH
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C415
Description
REAR LAMP ASSEMBLY RH
Color
Harness
14D466
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | GD351 (BK-GN) | 20 | GROUND - PILLAR D RIGHT | |
| 2 | CLS05 (BU-GY) | 20 | CTRL MOD. - PARK | |
| 3 | CLS19 (VT-OG) | 20 | CTRL MOD. - STOP/TURN RIGHT (INBOARD) | |
| 4 | * | * | Not Used | |
| 5 | CLS28 (BU-WH) | 20 | CTRL MOD. - RELAY REVERSE LAMP CONTROL (RLC) | |
| 6 | CLS54 (BU-OG) | 20 | LAMP - TURN REAR RIGHT # SIGNAL OUT | |
| 7 | CPL44 (YE-OG) | 20 | SWITCH - LIFTGATE/DECKLID/CARGO # AJAR | |
| 8 | CBP05 (YE) | 20 | FUSE - 5 OR CIRCUIT BREAKER |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1349 |
Service Part Number: DU2Z-14S411-TA Gauge: 20 Pin material: Tin (greased) Cavities: 8 Vehicle Uses Pump - Fuel Tank Leak Detection |
