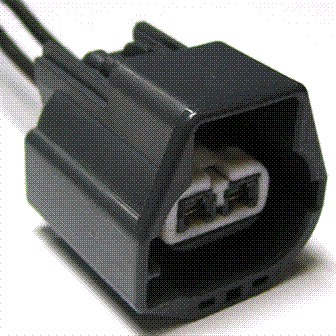

Connector End View C409 - FUEL FILLER DOOR LATCH MOTOR
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C409
Description
FUEL FILLER DOOR LATCH MOTOR
Color
Harness
14A411
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CPL11 (GY-BN) | 14 | CTRL MOD. - DOOR LOCK # ALL LOCK | |
| 2 | CPL51 (BU-GN) | 14 | CTRL MOD. - DOOR LOCK # DRIVER UNLOCK |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1336 |
Service Part Number: DU2Z-14S411-KA Gauge: 16 Pin material: Tin Cavities: 2 Vehicle Uses Motor - Fuel Filler Door Motor - Power Window - LH - Rear Motor - Power Window - RH - Rear |
| Pigtail Kit Part Number WPT-1496 |
Service Part Number: DU2Z-14S411-KB Gauge: 14 Pin material: Tin Cavities: 2 Vehicle Uses Glow Plug Motor - Fuel Filler Door Motor - Power Slider Motor - Power Window - LH - Front Motor - Power Window - LH - Rear Motor - Power Window - RH - Front Motor - Power Window - RH - Rear |
