Connector End View C402B - HEATED REAR WINDOW ELEMENT
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C402B
Description
HEATED REAR WINDOW ELEMENT
Color
Harness
17N400
Base Part #
18C618
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | GD382 (BK-GY) | 12 | GROUND - CROSS MEMBER MIDDLE DRIVER OR LEFT |
| Available Pigtail Kits | |

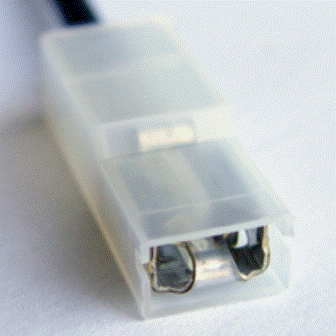

| Pigtail Kit Part Number WPT-1017 |
Service Part Number: 3U2Z-14S411-NYB Gauge: 14 Pin material: Tin Cavities: 1 Vehicle Uses Horn Lamp - Courtesy - Reading (Rear) Lamp - Dome Lamp - Storage Compartment - Cargo Terminal - Rear Window Defroster Grid |

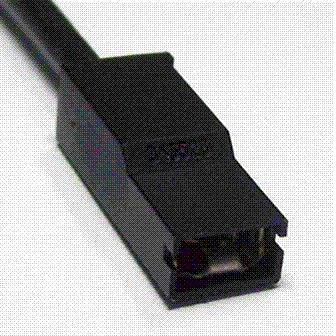

| Pigtail Kit Part Number WPT-461 |
Service Part Number: 3U2Z-14S411-NYA Gauge: 12 Pin material: Tin Cavities: 1 Vehicle Uses Lamp - Courtesy - Reading (Rear) |
