Connector End View C341C - DRIVER SEAT MODULE (DSM)
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

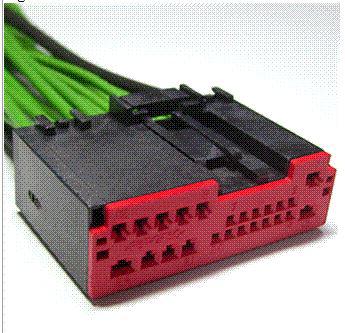

Connector: C341C
Description
DRIVER SEAT MODULE (DSM)
Color
BK
Harness
14D231
Base Part #
13C789
Service Pigtail
See Below
Check for Terminal Part Numbers

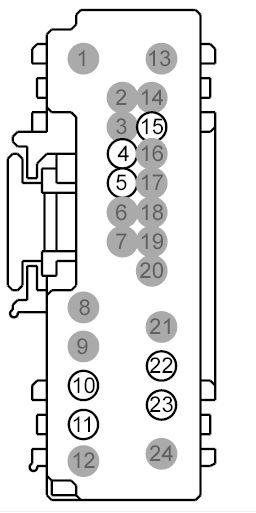

| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | * | * | Not Used | |
| 2 | * | * | Not Used | |
| 3 | * | * | Not Used | |
| 4 | RPP07 (YE-GN) | 20 | CTRL MOD. - SENSOR ADJUSTABLE STEERING COLUMN TELESCOPE (FORWARD/REARWARD) - | |
| 5 | CPP18 (BN-VT) | 20 | CTRL MOD. - SOLENOID RAKE (TILT) | |
| 6 | * | * | Not Used | |
| 7 | * | * | Not Used | |
| 8 | * | * | Not Used | |
| 9 | * | * | Not Used | |
| 10 | CPP04 (GY-OG) | 18 | CTRL MOD. - MOTOR ADJUSTABLE STEERING COLUMN TILT (RAKE) UP | |
| 11 | CPP22 (GY-BN) | 18 | CTRL MOD. - MOTOR ADJUSTABLE STEERING COLUMN TELESCOPE FORWARD | |
| 12 | * | * | Not Used | |
| 13 | * | * | Not Used | |
| 14 | * | * | Not Used | |
| 15 | RPP06 (GN) | 20 | CTRL MOD. - SENSOR ADJUSTABLE PEDAL - | |
| 16 | * | * | Not Used | |
| 17 | * | * | Not Used | |
| 18 | * | * | Not Used | |
| 19 | * | * | Not Used | |
| 20 | * | * | Not Used | |
| 21 | * | * | Not Used | |
| 22 | CPP23 (VT-GN) | 18 | CTRL MOD. - MOTOR ADJUSTABLE STEERING COLUMN TILT (RAKE) DOWN | |
| 23 | CPP03 (GN-VT) | 18 | CTRL MOD. - MOTOR ADJUSTABLE STEERING COLUMN TELESCOPE REARWARD | |
| 24 | * | * | Not Used |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1126 |
Service Part Number: AU2Z-14S411-ATA Gauge: 12 16 18 Pin material: Tin & Silver Cavities: 24 Vehicle Uses Module - Driver Door Module - Seat Memory Module - Tire Pressure |
