Connector End View C341A - DRIVER SEAT MODULE (DSM)

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

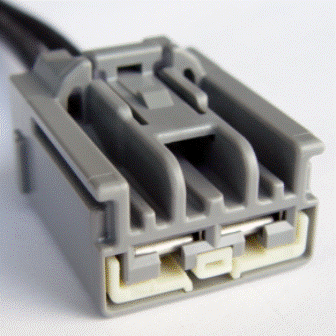

Connector: C341A

Description

DRIVER SEAT MODULE (DSM)

Color

Harness

14D231

Base Part #

13C789

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CBX05 (VT-RD)	14	FUSE - 14 OR CIRCUIT BREAKER
2	GD906 (BK-GY)	14	GROUND - SEAT # MEMORY MODULE HIGH CURRENT

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1486

Service Part Number:

3U2Z-14S411-PB

Gauge:

Pin material:

Tin

Cavities:

Vehicle Uses

Inverter - DC to AC

Module - Heated Seat

Module - Lighting Control

Module - Seat Memory

Module - Variable Speed Blower Controller

Motor - Heater/AC Blower (Auxiliary)

Motor - Heater/AC Blower (Front)

Radio - Amplifier

Relay - Blower Motor

Relay - Trailer Tow

Resistor - Blower Motor (Front)

Switch - Heater / A/C Blower (Front)

Terminal - Rear Window Defroster Grid

Trailer Tow - Vehicle Side
