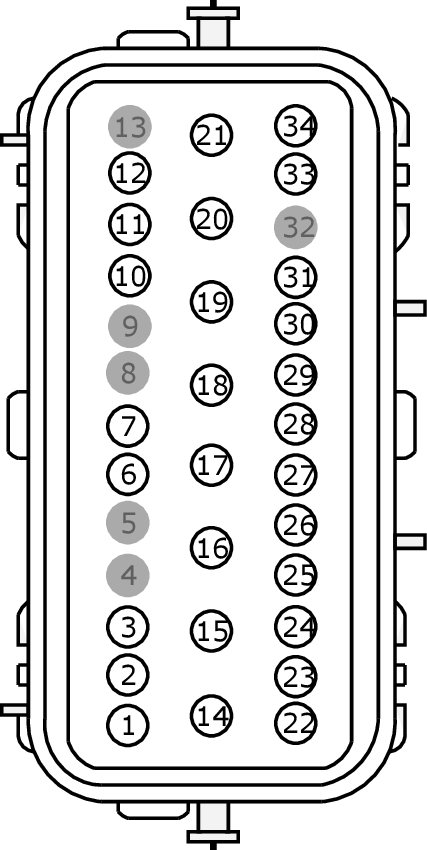

Connector End View C339 - INLINE
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
InlineC339
Description
INLINE
Color
BK
Base Part #
Service Pigtail
Not Available
MALE
Harness 14014
FEMALE
Harness 14D230
| Pin | Circuit | Gauge | Qualifier |
| 1 | CR106 (VT-GY) | 20 | |
| 2 | RR106 (YE-OG) | 20 | |
| 3 | VR215 (YE-VT) | 20 | 14D230 |
| 3 | VR216 (GN-OG) | 20 | 14014 |
| 4 | * | * | |
| 5 | * | * | |
| 6 | VDB06 (GY-OG) | 20 | |
| 7 | VDB07 (VT-OG) | 20 | |
| 8 | * | * | 14014 |
| 8 | VR210 (BU-BN) | 20 | 14D230 |
| 9 | * | * | 14014 |
| 9 | LR142 (YE-BU) | 20 | 14D230 |
| 10 | CR201 (GN-BU) | 20 | 14D230 |
| 10 | CR203 (GY-VT) | 20 | 14014 |
| 11 | VDB04 (WH-BU) | 20 | 14D230 |
| 11 | VDB25 (GN-OG) | 20 | 14014 |
| 12 | VDB05 (WH) | 20 | 14D230 |
| 12 | VDB26 (GY-BU) | 20 | 14014 |
| 13 | * | * | |
| 14 | CHS02 (YE-BU) | 14 | |
| 15 | RHS02 (BU-OG) | 14 | |
| 16 | GD241 (BK-BU) | 12 | 14014 |
| 16 | GD904 (BK-BU) | 14 | 14D230 |
| 17 | GD241 (BK-WH) | 16 | 14014 |
| 17 | GD901 (BK) | 16 | 14D230 |
| 18 | RHS01 (WH-VT) | 14 | |
| 19 | CHS01 (GY-VT) | 14 | |
| 20 | CBX01 (GN-RD) | 14 | 14D230 |
| 20 | SBR11 (BU-RD) | 12 | 14014 |
| 21 | CBX05 (VT-RD) | 14 | 14D230 |
| 21 | SBR14 (BN-RD) | 12 | 14014 |
| 22 | VHS26 (VT) | 20 | |
| 23 | RHS05 (YE-VT) | 20 | |
| 24 | CHS14 (GN) | 20 | 14D230 |
| 24 | VHS35 (VT-OG) | 20 | 14014 |
| 25 | CHS29 (WH-BU) | 20 | 14D230 |
| 25 | RHS15 (GY-BN) | 20 | 14014 |
| 26 | VHS18 (BN-GN) | 20 | |
| 27 | CHS09 (GY) | 20 | 14D230 |
| 27 | VHS16 (BU-GN) | 20 | 14014 |
| 28 | CHS03 (GN-BN) | 16 | 14014 |
| 28 | CHS03 (GN-BN) | 18 | 14D230 |
| 29 | RHS03 (GY-OG) | 16 | 14014 |
| 29 | RHS03 (GY-OG) | 18 | 14D230 |
| 30 | RH111 (GY-BU) | 20 | 14014 |
| 30 | RHS05 (YE-VT) | 20 | 14D230 |
| 31 | RHS10 (BU-OG) | 20 | 14014 |
| 31 | VHS26 (VT) | 20 | 14D230 |
| 32 | * | * | |
| 33 | CHS02 (YE-BU) | 16 | 14D230 |
| 33 | CHS07 (GY-BU) | 14 | 14014 |
| 34 | CBP22 (GN-OG) | 20 | 14014 |
| 34 | CBX02 (BN-RD) | 20 | 14D230 |
