Connector End View C332 - PASSENGER SEAT HORIZONTAL MOTOR
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C332
Description
PASSENGER SEAT HORIZONTAL MOTOR
Color
Harness
14D230
Base Part #
61704
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CPS23 (GN-VT) | 14 | SWITCH - SEAT ADJUST. DRIVER FORWARD | |
| 2 | * | * | Not Used | |
| 3 | CPS28 (GN) | 14 | SWITCH - SEAT ADJUST. DRIVER REARWARD | |
| 4 | * | * | Not Used |

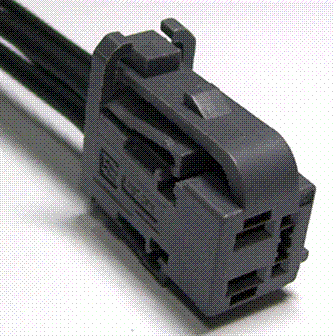

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1350 |
Service Part Number: DU2Z-14S411-UA Gauge: 16 20 Pin material: Tin Cavities: 4 Vehicle Uses Motor - Power Seat Track Motor - Seat Height (Front) |
