Connector End View C330 - PASSENGER SEAT REAR HEIGHT MOTOR

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

Connector: C330

Description

PASSENGER SEAT REAR HEIGHT MOTOR

Color

Harness

14D230

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CPS26 (YE-BU)	14	SWITCH - SEAT ADJUST. DRIVER REAR HEIGHT DOWN
2	*	*	Not Used
3	CPS27 (BU-BN)	14	SWITCH - SEAT ADJUST. DRIVER REAR HEIGHT UP
4	*	*	Not Used

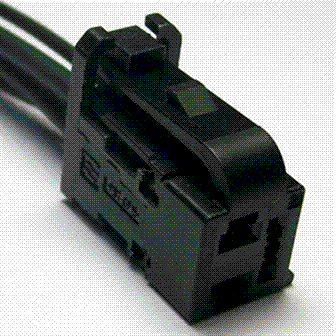

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1311

Courtesy of FORD MOTOR COMPANY

Service Part Number:

CU2Z-14S411-BAA

Gauge:

Pin material:

Tin

Cavities:

Vehicle Uses

Motor - Seat Height (Front)

Motor - Seat Recline
