Connector End View C328 - INLINE
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
InlineC328
Description
INLINE
Color
Base Part #
Service Pigtail
See Below
MALE
Harness 14014
FEMALE
Harness 2C055
| Pin | Circuit | Gauge | Qualifier |
| 1 | CCB19 (GN-BN) | 12 | |
| 2 | CCB18 (YE-GY) | 12 | |
| 3 | VCA06 (WH-OG) | 20 | |
| 4 | RCA20 (BN) | 20 |

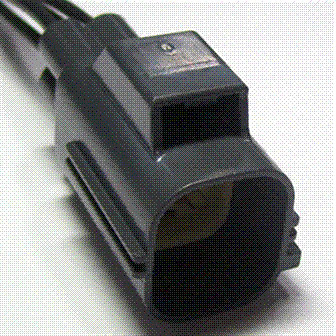

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1012 |
Service Part Number: 9U2Z-14S411-PA Gauge: 14 Pin material: Tin Cavities: 4 Vehicle Uses: Motor - Windshield Wiper Radio - Amplifier |
