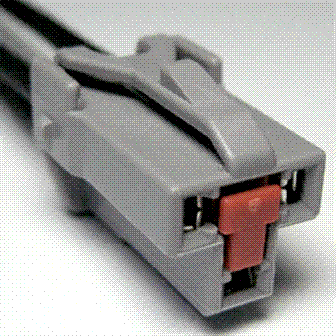

Connector End View C319 - CIGAR LIGHTER
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C319
Description
CIGAR LIGHTER
Color
GY
Harness
14B079
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | SBR12 (GN-RD) | 14 | FUSE - 12 OR CIRCUIT BREAKER | |
| 2 | * | * | Not Used | |
| 3 | GD234 (BK-VT) | 14 | GROUND - COWL SIDE/PILLAR A LEFT # 2ND POINT |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1160 |
Service Part Number: 3U2Z-14S411-SJB Gauge: 12 Pin material: Tin Cavities: 3 Vehicle Uses Cigar Lighter Lamp - Ash Tray Power Point |
