Connector End View C297B - BLOWER MOTOR CONTROL MODULE
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C297B
Description
BLOWER MOTOR CONTROL MODULE
Color
GY
Harness
PIA
Base Part #
part# N/A
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | * (*) | * | BLOWER MOTOR + | |
| 2 | * (*) | * | BLOWER MOTOR - | |
| 3 | * | * | Not Used | |
| 4 | * | * | Not Used |
| Available Pigtail Kits | |

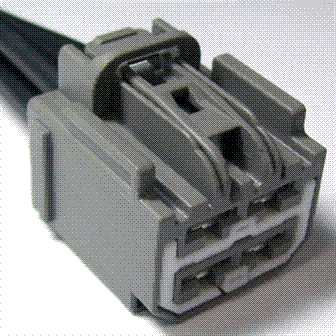

| Pigtail Kit Part Number WPT-1177 |
Service Part Number: AU2Z-14S411-BHA Gauge: 10 Pin material: Tin Cavities: 4 Vehicle Uses Mating Connector WPT-1408 Resistor - Blower Motor (Front) Switch - Heater / A/C Blower (Front) |
