Connector End View C264 - INLINE
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
InlineC264
Description
INLINE
Color
BK
Base Part #
Service Pigtail
See Below
MALE
Harness PIA
FEMALE
Harness PIA
| Pin | Circuit | Gauge | Qualifier |
| 1 | CRH02 (*) | * | |
| 2 | LX105 (*) | * | |
| 3 | RX101 (*) | * | |
| 4 | RX102 (*) | * | |
| 5 | VLN04 (*) | * | |
| 6 | RRH02 (*) | * | |
| 7 | * | * | |
| 8 | * | * |

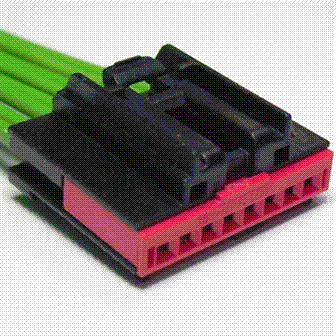

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1219 |
Service Part Number: 3U2Z-14S411-DAAC Gauge: 18 Pin material: Silver Cavities: 8 Vehicle Uses: Switch - Ambient Lighting Dimmer Switch - Door Lock (LH) Switch - Message Center Switch - Moon Roof/Sun Roof Switch - Seat Memory |
