Connector End View C256A - PASSENGER AIRBAG
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C256A
Description
PASSENGER AIRBAG
Color
Harness
14401
Base Part #
part# N/A
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CR103 (GY-BU) | 20 | CTRL MOD. - AIR BAG FRONT PASSENGER 1 + | |
| 2 | RR103 (VT-GN) | 20 | CTRL MOD. - AIR BAG FRONT PASSENGER 1 - |

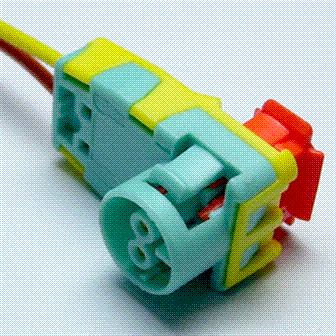

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1226 |
Service Part Number: BU2Z-14S411-BJA Gauge: 20 Pin material: FCI - Airbag Cavities: 2 Vehicle Uses Squib - Airbag (Passenger) |
