Connector End View C221 - INLINE
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
InlineC221
Description
INLINE
Color
GY
Base Part #
Service Pigtail
See Below

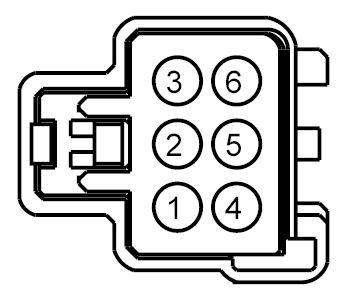

MALE
Harness 14014

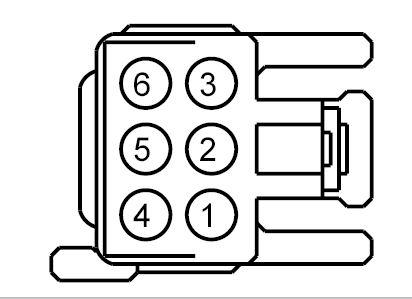

FEMALE
Harness 14401
| Pin | Circuit | Gauge | Qualifier |
| 1 | VDB04 (WH-BU) | 22 | |
| 2 | VDB05 (WH) | 22 | |
| 3 | CR194 (VT-WH) | 18 | |
| 4 | CRW38 (YE-BU) | 12 | 14401 |
| 4 | CRW38 (YE-BU) | 20 | 14014 |
| 5 | VDB04 (WH-BU) | 22 | |
| 6 | VDB05 (WH) | 22 |
| Available Pigtail Kits | |

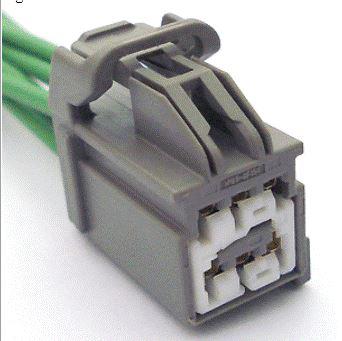

| Pigtail Kit Part Number WPT-1299 |
Service Part Number: 3U2Z-14S411-NBB Gauge: 18 Pin material: Silver Cavities: 6 Vehicle Uses: Connector - Inline Element - Heated Seat Inverter - DC to AC Lamp - CHMSL (Center High Mount Stop Lamp) Lamp - Courtesy - Footwell Lamp - License Lamp - Park/Turn/Stop Lamp - Top Finish Panel Mating Connector WPT-962 Motor - Adjustable Pedal Switch - Gear Shift Select/Neutral Safety Switch - Multifunction |

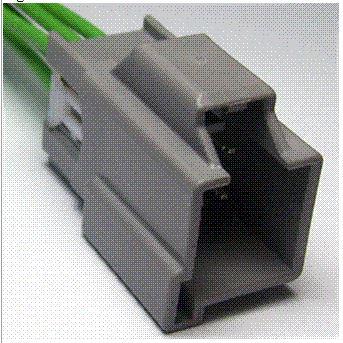

| Pigtail Kit Part Number WPT-962 |
Service Part Number: 3U2Z- 14S411-JBB Gauge: 14 Pin material: Silver Cavities: 6 Vehicle Uses: Mating Connector WPT-1299 Switch - Gear Shift Select/Neutral Safety Switch - Overdrive Cancel Switch - Power Sliding Door |
