Connector End View C217 - HORN SWITCH
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C217
Description
HORN SWITCH
Color
BK
Harness
PIA
Base Part #
part# N/A
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CRH02 (*) | 20 | SWITCH - HORN | |
| 2 | RRH02 (*) | 20 | GROUND - INSTRUMENT PANEL STRUCTURE |

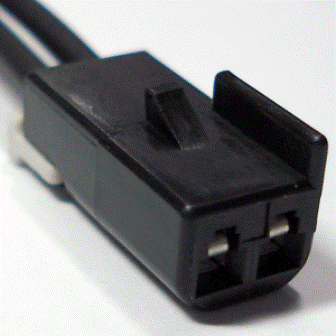

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-967 |
Service Part Number: 3U2Z-14S411-CZB Gauge: 16 Pin material: Tin Cavities: 2 Vehicle Uses Module - Auto Lamps Sensor - EATC In Car Temperature Sensor - Sunload Switch - Overdrive Cancel |
