Connector End View C216A - DRIVER AIRBAG
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C216A
Description
DRIVER AIRBAG
Color
GY
Harness
PIA
Base Part #
74043B13
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CR101 (YE-GN) | 20 | CTRL MOD. - AIR BAG DRIVER 1 + | |
| 2 | RR101 (VT-BN) | 20 | CTRL MOD. - AIR BAG DRIVER 1 - |

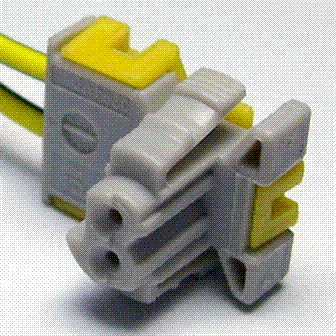

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1223 |
Service Part Number: BU2Z-14S411-BFA Gauge: 20 Pin material: FCI - Airbag Cavities: 2 Vehicle Uses Squib - Airbag (Passenger) |
