Connector End View C215 - INLINE
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
InlineC215
Description
INLINE
Color
BK
Base Part #
Service Pigtail
See Below
MALE
Harness 14401
FEMALE
Harness 14K733
| Pin | Circuit | Gauge | Qualifier |
| 1 | VLF33 (BU) | 20 | |
| 2 | DLF33 (*) | 20 | 14K733 |
| 2 | DLF33 (BARE) | 22 | 14401 |
| 3 | CRD02 (BN-BU) | 20 | 14K733 |
| 3 | CRD02 (BN-BU) | 22 | 14401 |
| 4 | CMC20 (VT) | 20 | |
| 5 | CCB08 (VT-WH) | 20 | |
| 6 | CPK34 (BN-VT) | 20 | |
| 7 | VDN15 (WH-VT) | 20 | |
| 8 | * | * | |
| 9 | CCB20 (BU-WH) | 20 | |
| 10 | CCB21 (GN-VT) | 20 | |
| 11 | * | * | |
| 12 | CCB22 (WH-BN) | 20 | |
| 13 | CCB23 (VT-GN) | 20 | |
| 14 | CCB24 (WH-OG) | 20 | |
| 15 | CCB25 (BN) | 20 | |
| 16 | * | * | |
| 17 | VDB26 (GY-BU) | 20 | |
| 18 | VDB25 (GN-OG) | 20 | |
| 19 | VDB04 (WH-BU) | 20 | |
| 20 | VDB05 (WH) | 20 | |
| 21 | * | * |

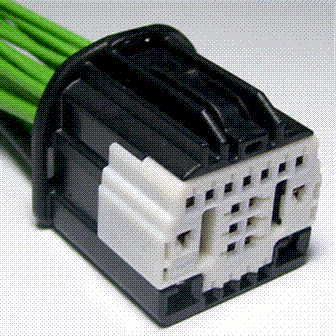

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1425 |
Service Part Number: FU2Z-14S411-RA Gauge: 14 16 20 Pin material: Tin & Silver Cavities: 21 Vehicle Uses: Connector - Inline |
