Connector End View C214 - INLINE
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
InlineC214
Description
INLINE
Color
GY
Base Part #
Service Pigtail
See Below
MALE
Harness 14401
FEMALE
Harness 14K733
| Pin | Circuit | Gauge | Qualifier |
| 1 | VLF32 (YE) | 20 | |
| 2 | DLF32 (*) | 20 | 14K733 |
| 2 | DLF32 (BARE) | 22 | 14401 |
| 3 | VH451 (WH-GN) | 20 | |
| 4 | CH123 (VT-GN) | 20 | |
| 5 | VET78 (WH-VT) | 20 | |
| 6 | * | * | |
| 7 | VET76 (GN-OG) | 20 | |
| 8 | VET77 (GY-YE) | 20 | |
| 9 | VR214 (WH-BU) | 20 | |
| 10 | RR130 (GN-BU) | 20 | |
| 11 | CBB42 (GN) | 20 | |
| 12 | CRW15 (BN-WH) | 20 | 14K733 |
| 12 | CRW15 (BN-WH) | 22 | 14401 |
| 13 | * | * | |
| 14 | * | * | |
| 15 | RE407 (YE-VT) | 20 | 14K733 |
| 15 | RX101 (BU-BN) | 20 | 14401 |
| 16 | CH402 (YE-GN) | 10 | |
| 17 | CET42 (GN-VT) | 20 | |
| 18 | CET43 (GY) | 20 | |
| 19 | RR129 (YE-GY) | 20 | |
| 20 | VR213 (VT-GN) | 20 | |
| 21 | * | * |

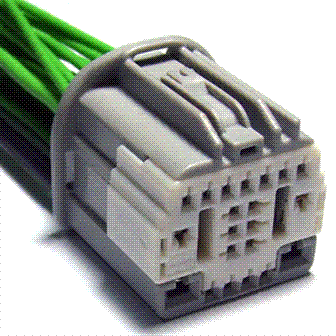

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1463 |
Service Part Number: GU2Z-14S411-GA Gauge: 14 16 20 Pin material: Tin & Silver Cavities: 21 Vehicle Uses: Connector - Inline |
| Pigtail Kit Part Number WPT-1482 |
Service Part Number: GU2Z-14S411-GB Gauge: 14 16 Pin material: Tin & Silver Cavities: 21 Vehicle Uses: Connector - Inline |
