Connector End View C192 - INLINE
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
InlineC192
Description
INLINE
Color
GY
Base Part #
Service Pigtail
See Below
MALE
Harness 14K733
FEMALE
Harness 8C290
| Pin | Circuit | Gauge | Qualifier |
| 1 | CEC06 (YE-OG) | 10 | |
| 2 | CEC05 (VT-GY) | 10 | |
| 3 | CEC07 (BN) | 10 | |
| 4 | GD122 (BK) | 10 |
| Available Pigtail Kits | |

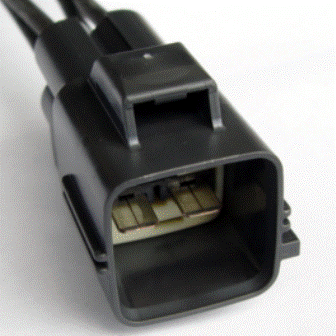

| Pigtail Kit Part Number WPT-750 |
Service Part Number: 3U2Z-14S411-EJAA Gauge: 10 Pin material: Tin Cavities: 4 Vehicle Uses: Mating Connector WPT-1343 Motor - Engine Cooling Fan |

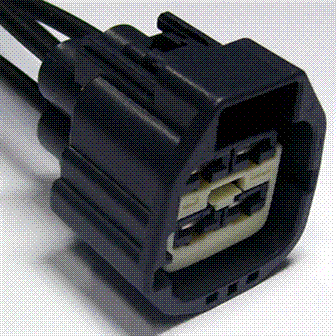

| Pigtail Kit Part Number WPT-1343 |
Service Part Number: DU2Z-14S411-ABA Gauge: 12 Pin material: Tin Cavities: 4 Vehicle Uses: Mating Connector WPT-750 Motor - Engine Cooling Fan |
