Connector End View C160 - FRONT WHEEL SPEED SENSOR, RH
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C160
Description
FRONT WHEEL SPEED SENSOR, RH
Color
BK
Harness
14K733
Base Part #
2C204
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | VCA05 (VT) | 20 | SENSOR - WHEEL SPEED RIGHT FRONT | |
| 2 | RCA19 (YE) | 20 | CTRL MOD. - SENSOR WHEEL SPEED RIGHT FRONT |

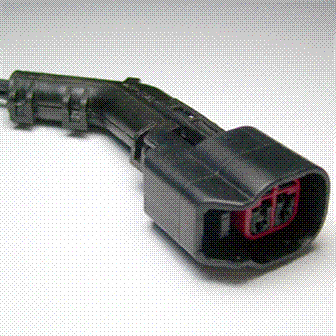

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1246 |
Service Part Number: BU2Z-14S411-RA Gauge: 14 Pin material: Tin (greased) Cavities: 2 Vehicle Uses Sensor - Speed |
