Connector End View C153 - HEADLAMP WASHER PUMP
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C153
Description
HEADLAMP WASHER PUMP
Color
Harness
14K733
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | GD123 (BK-GY) | 14 | GROUND - FENDER FRONT RIGHT | |
| 2 | CRW04 (VT-GN) | 14 | RELAY - HEADLAMP CLEANING |

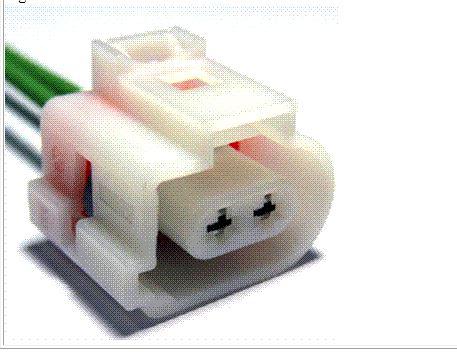

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1483 |
Service Part Number: GU2Z-14S411-ZA Gauge: 14 Pin material: Silver Cavities: 2 Vehicle Uses Motor - Headlamp Washer Pump |
