Connector End View C146 - INLINE
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
InlineC146
Description
INLINE
Color
DK GY
Base Part #
Service Pigtail
See Below
MALE
Harness 14K733
FEMALE
Harness 8C290
| Pin | Circuit | Gauge | Qualifier |
| 1 | CEC09 (BN) | 10 | |
| 2 | CEC09 (GN-BU) | 10 |
| Available Pigtail Kits | |

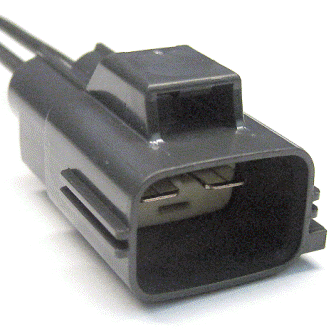

| Pigtail Kit Part Number WPT-916 |
Service Part Number: 8U2Z-14S411-PA Gauge: 12 Pin material: Tin Cavities: 2 Vehicle Uses: Pump - Vacuum |

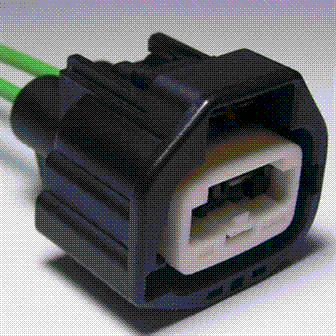

| Pigtail Kit Part Number WPT-1417 |
Service Part Number: 3U2Z-14S411-EUAB Gauge: 14 Pin material: Silver Cavities: 2 Vehicle Uses: Motor - Engine Cooling Fan Pump - Fuel (External) Resistor - Fan Dropping Trailer Tow - Vehicle Side |
