Connector End View C145 - INLINE
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
InlineC145
Description
INLINE
Color
BK
Base Part #
Service Pigtail
See Below

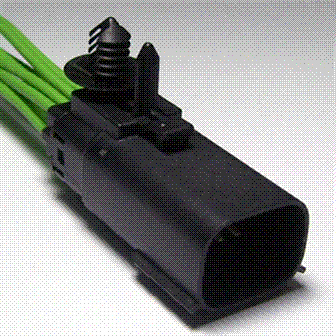

MALE
Harness 13A840

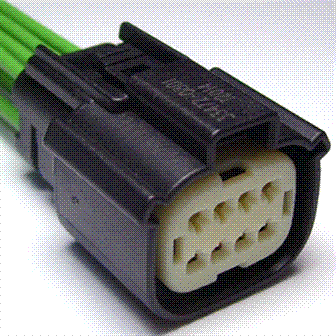

FEMALE
Harness 14K733
| Pin | Circuit | Gauge | Qualifier |
| 1 | CRW15 (BN-WH) | 20 | |
| 2 | VDN05 (YE-GY) | 20 | |
| 3 | GD120 (BK-GN) | 14 | |
| 4 | CRW14 (BU-WH) | 18 | |
| 5 | CRW03 (VT-WH) | 14 | |
| 6 | CRW38 (GN-BU) | 20 | 13A840 |
| 6 | CRW38 (YE-BU) | 20 | 14K733 |
| 7 | CRW02 (GY-BU) | 18 | |
| 8 | CRW34 (BU-BN) | 20 |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1407 |
Service Part Number: FU2Z-14S411-DA Gauge: 16 Pin material: Silver Cavities: 8 Vehicle Uses: Mirror - Sideview |
| Pigtail Kit Part Number WPT-1415 |
Service Part Number: FU2Z-14S411-DB Gauge: 16 Pin material: Silver Cavities: 8 Vehicle Uses: Mirror - Sideview |
| Pigtail Kit Part Number WPT-1276 |
Service Part Number: CU2Z-14S411-ALA Gauge: 18 Pin material: Silver Cavities: 8 Vehicle Uses: Connector - Inline |
