Connector End View C142 - HEATED OXYGEN SENSOR (HO2S) #12
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C142
Description
HEATED OXYGEN SENSOR (HO2S) #12
Color
BK
Harness
12C508
Base Part #
9G444
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CBK02 (GN) | 18 | FUSE - 33 OR CIRCUIT BREAKER (VPWR 2) | |
| 2 | CE233 (WH-OG) | 18 | CTRL MOD. - POWERTRAIN # HEATER OXYGEN SEN. POST CAT. 1ST OR UNIQUE (HTR12) | |
| 3 | RE406 (GY-VT) | 18 | CTRL MOD. - POWERTRAIN # SIGNAL RETURN TRANSMISSION (T-SIGRTN) (SIGRTN-B) | |
| 4 | VE731 (YE-GN) | 18 | SENSOR - HEATED OXYGEN POST CAT. 1ST OR UNIQUE (HO2S12) |

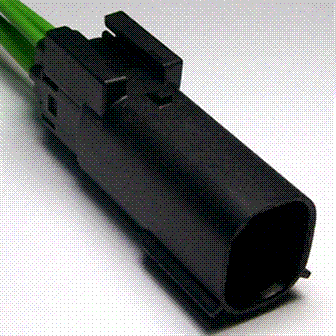

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1288 |
Service Part Number: CU2Z-14S411-ZA Gauge: 16 Pin material: Silver Cavities: 4 Vehicle Uses Sensor - Catalyst Monitor Sensor - O2 (HEGO/ EGO) |
