Connector End View C138 - LOW WASHER FLUID WARNING INDICATOR SWITCH

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

Connector: C138

Description

LOW WASHER FLUID WARNING INDICATOR SWITCH

Color

Harness

14K733

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CMC20 (VT)	20	SWITCH - LOW LEVEL WASHER FLUID
2	GD123 (BK-GY)	18	GROUND - FENDER FRONT RIGHT

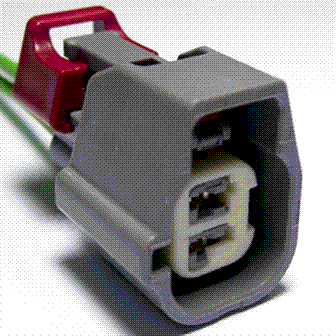

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1422

Courtesy of FORD MOTOR COMPANY

Service Part Number:

FU2Z-14S411-MA

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses

Sensor - Washer Fluid level
