Connector End View C137 - WINDSHIELD WASHER PUMP
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C137
Description
WINDSHIELD WASHER PUMP
Color
Harness
14K733
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CRW14 (BU-WH) | 18 | CTRL MOD. - FRONT WASHER | |
| 2 | GD120 (BK-GN) | 18 | GROUND - FENDER FRONT LEFT |

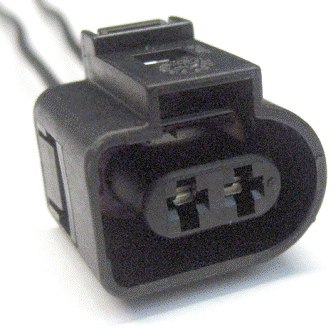

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-908 |
Service Part Number: 8U2Z-14S411-MA Gauge: 14 Pin material: Tin Cavities: 2 Vehicle Uses Monitor - Video/DVD Motor - Convertible Top |
