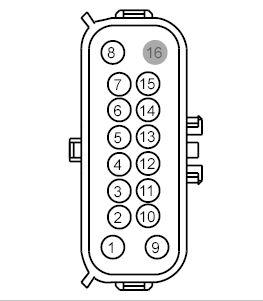

Connector End View C134 - INLINE
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
InlineC134
Description
INLINE
Color
BK
Base Part #
Service Pigtail
See Below
MALE
Harness 9H589
FEMALE
Harness 12C508
| Pin | Circuit | Gauge | Qualifier |
| 1 | CE205 (GN-BU) | 16 | 12C508 |
| 1 | CE205 (GN-BU) | 18 | 9H589 |
| 2 | RE323 (WH-BN) | 18 | 12C508 |
| 2 | RE323 (WH-BN) | 20 | 9H589 |
| 3 | VE801 (VT-OG) | 18 | 12C508 |
| 3 | VE801 (VT-OG) | 20 | 9H589 |
| 4 | CE206 (GY-YE) | 16 | 12C508 |
| 4 | CE206 (GY-YE) | 18 | 9H589 |
| 5 | CE207 (VT-GY) | 16 | 12C508 |
| 5 | CE207 (VT-GY) | 18 | 9H589 |
| 6 | CE208 (YE-OG) | 16 | 12C508 |
| 6 | CE208 (YE-OG) | 18 | 9H589 |
| 7 | RE324 (BN-GN) | 20 | 9H589 |
| 7 | RE324 (GN) | 18 | 12C508 |
| 8 | VE802 (BN-BU) | 18 | 12C508 |
| 8 | VE802 (BN-BU) | 20 | 9H589 |
| 9 | RE205 (YE-BU) | 16 | 12C508 |
| 9 | RE205 (YE-BU) | 18 | 9H589 |
| 10 | RE454 (YE-GN) | 18 | |
| 11 | LE238 (GY) | 18 | |
| 12 | RE206 (BU-OG) | 16 | 12C508 |
| 12 | RE206 (BU-OG) | 18 | 9H589 |
| 13 | RE207 (GN-VT) | 16 | 12C508 |
| 13 | RE207 (GN-VT) | 18 | 9H589 |
| 14 | RE208 (BU) | 16 | 12C508 |
| 14 | RE208 (BU) | 18 | 9H589 |
| 15 | LE423 (GN-VT) | 18 | |
| 16 | * | * |
| Available Pigtail Kits | |

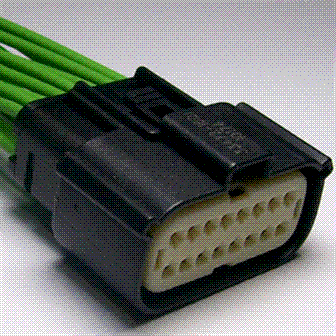

| Pigtail Kit Part Number WPT-1404 |
Service Part Number: EU2Z-14S411-VA Gauge: 16 Pin material: Silver Cavities: 16 Vehicle Uses: Mating Connector WPT-1279 Mirror - Sideview |

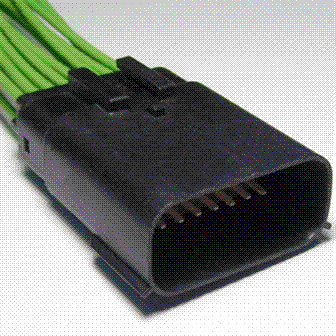

| Pigtail Kit Part Number WPT-1279 |
Service Part Number: CU2Z-14S411-ADA Gauge: 16 Pin material: Silver Cavities: 16 Vehicle Uses: Lamp - Headlamp - High/Low Beam Mating Connector WPT-1404 Module - Heated Seat (driver) Module - Transfer Case Shift Control |
