Connector End View C133 - INLINE
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
InlineC133
Description
INLINE
Color
GY
Base Part #
Service Pigtail
Not Available

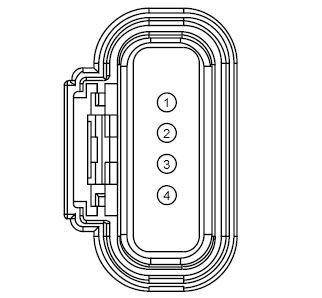

MALE
Harness 12C508

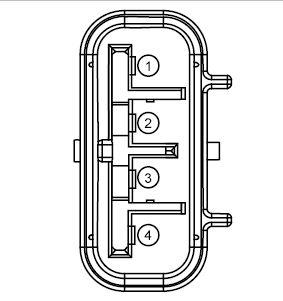

FEMALE
Harness 14A280
 Courtesy of FORD MOTOR COMPANY
|
 Courtesy of FORD MOTOR COMPANY
|
| Pin |
Circuit |
Gauge |
Qualifier |
| 1 |
CDC25 (BN-GN) |
12 |
| 2 |
CBK03 (GY) |
18 |
| 3 |
CH307 (GY-BU) |
18 |
| 4 |
GD108 (BK-GY) |
18 |
12C508 |
| 4 |
GD108 (BK-VT) |
18 |
14A280 |
