Connector End View C123 - EVAPORATIVE EMISSION (EVAP) PURGE VALVE
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C123
Description
EVAPORATIVE EMISSION (EVAP) PURGE VALVE
Color
BK
Harness
12C508
Base Part #
9C915
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CE113 (WH-BN) | 18 | CTRL MOD. - POWERTRAIN # CANISTER PURGE VALVE (EVAPCP) | |
| 2 | CBK02 (GN) | 18 | FUSE - 33 OR CIRCUIT BREAKER (VPWR 2) |

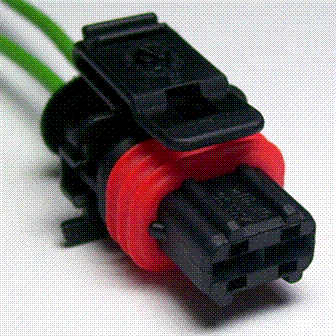

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1274 |
Service Part Number: BU2Z-14S411-BCA Gauge: 18 Pin material: Silver Cavities: 2 Vehicle Uses Valve - Vapor Management |
