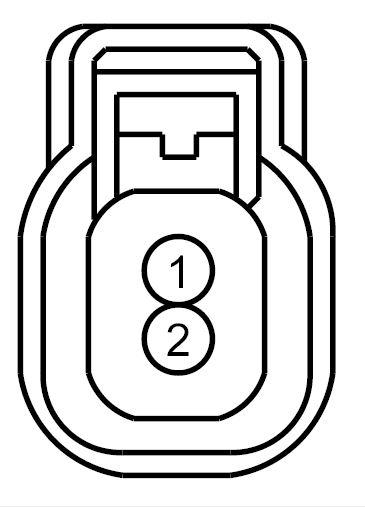

Connector End View C100 - AIR CONDITIONING (A/C) COMPRESSOR

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

Connector: C100

Description

AIR CONDITIONING (A/C) COMPRESSOR

Color

Harness

12C508

Base Part #

part# N/A

Service Pigtail

See Below

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CH401 (VT-WH)	18	RELAY - A/C CLUTCH
2	GD120 (BK-GN)	18	GROUND - FENDER FRONT LEFT

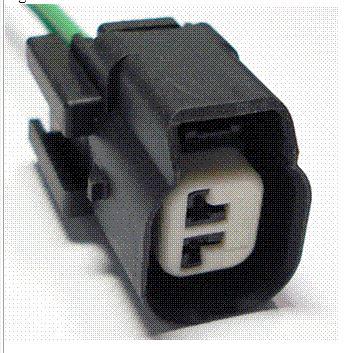

Available Pigtail Kits

Pigtail Kit Part Number

WPT-984

Service Part Number:

3U2Z-14S411-BXAB

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses

A/C Compressor Clutch

EGR Cooler Outlet

Electronic Locking Differential

Horn

Lamp - CHMSL (Center High Mount Stop Lamp)

Lamp - Rear Park

Lamp - Reverse

Lamp - Side Marker

Motor - Adjustable Pedal

Sensor - Adjustable Pedal

Sensor - Brake Fluid Level

Sensor - Cam Shaft Position

Sensor - Cylinder Head Temperature

Sensor - Exhaust Gas Temperature

Sensor - Liftgate Obstacle

Sensor - Oil Level

Sensor - Output Shaft Speed

Sensor - Speed

Solenoid - Engine Variable Timing

Speaker - Door

Speaker - Front

Speaker - Rear

Speaker - Subwoofer

Speaker - Tweeter - LH - Front

Switch - A/C Compressor Clutch Cycling

Switch - Backup Lamp

Switch - Deck Lid / Hatch Release

Switch - Deck Lid / Lift Gate Ajar

Switch - Hood Ajar

Switch - Lift Gate Glass Ajar

Switch - Power Liftgate

Switch - Reverse Park Aid
