Side Airbag: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: The following procedure prescribes critical repair steps required. For correct restraint system operation during a crash. Follow all notes and steps carefully. Failure to follow step instructions may result in incorrect operation of the restraint system and increases the risk of serious personal injury or death in a crash.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the front seat. REFER to: Front Seat .
  2. Detach the wire harness electrical connector retainers and position aside.

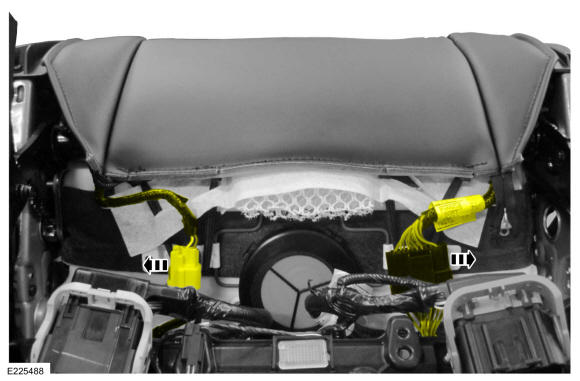

    GFD230696Courtesy of FORD MOTOR COMPANY
    1. Detach the backrest cover straps.
    2. Route the backrest cover straps through the backrest blower motor snorkel.
    3. Position the backrest cover upward.

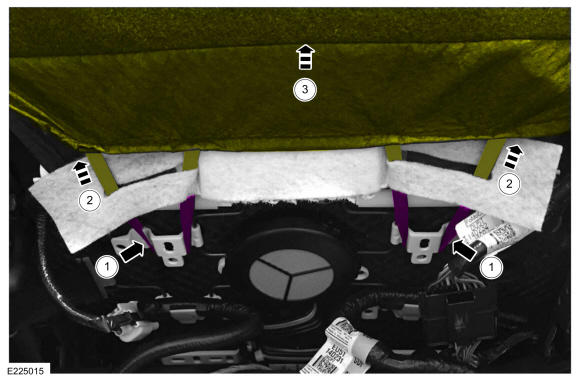

    GFD230697Courtesy of FORD MOTOR COMPANY
  4. Release the J-clip.

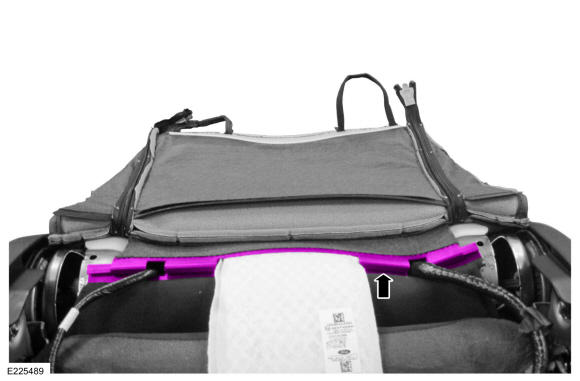

    GFD230698Courtesy of FORD MOTOR COMPANY
  5. NOTE: To install, gradually alternate the left and right seat backrest cover zippers to prevent damage to the seat backrest cover.

    1. Unzip the seat backrest cover.
    2. Lift the seat backrest cover.

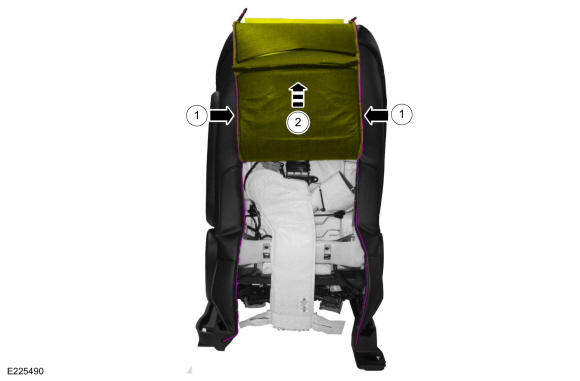

    GFD230699Courtesy of FORD MOTOR COMPANY
    • Remove the 2 side airbag nuts.

      Torque: 58 lb.in (6.5 Nm)

    • Detach the side airbag from the backrest frame.

    • Slide the locking wedge out, disconnect the electrical connector and remove the side airbag.

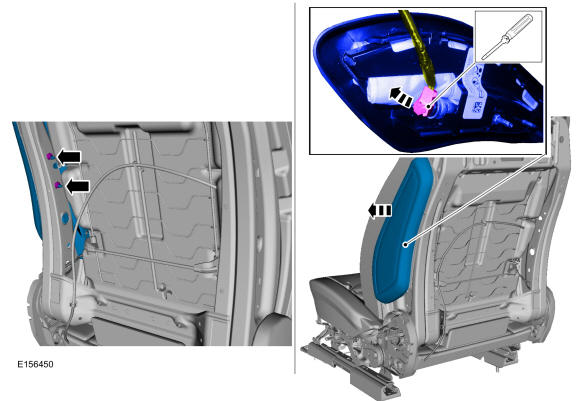

GFD230700Courtesy of FORD MOTOR COMPANY
